V10™ Fittings

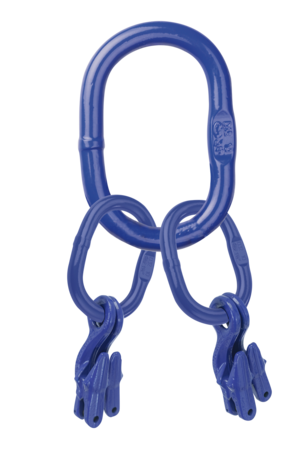

V10™ Master Link Assemblies w/Shortening Hook - Triple & Quad Leg

The benefits of the V10 shortening grab hook and master link without the need of a coupling link:

  • V10 shortening hooks DO NOT require a reduction of working load limit when used in a shortening application
  • Easily adjust the chain length of a sling leg to accommodate uneven pick points

For use with Grade 80/100 chain slings - Meets or exceeds all requirements of ASME B30.9, B30.10, B30.26 and ASTM A952 & A906 - 4 to 1 Design Factor - Made in Italy

staging.peerlesschain.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at staging.peerlesschain.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
V10™ Fittings

V10™ Master Link Assemblies w/Shortening Hook - Triple & Quad Leg

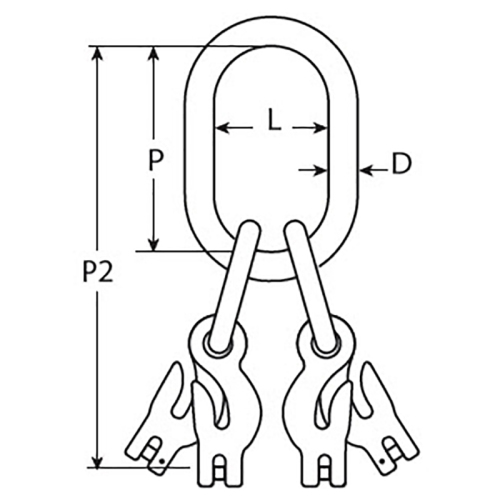

Diagram Drawings

*For informational purposes only, contact Peerless for dimensional drawing

staging.peerlesschain.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at staging.peerlesschain.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
V10™ Fittings

V10™ Master Link Assemblies w/Shortening Hook - Triple & Quad Leg

Products Specifications

Product Manufacturer Part No. Chain Size Inches Chain Size mm Dim D (in.) Dim P (in.) Dim P2 Dim L (in.) Lbs. Per Ea. Working Load Limit (Lbs.) @ 60°
8451070 D18L13GI 1/4 6 0.75 5.31 11.14 2.95 5.42 8000
8451170 D22L16GI 9/32 - 5/16 7-8 0.91 6.30 13.66 3.54 10.58 14800
8451270 D26L20GI 3/8 10 1.06 7.09 16.26 3.94 18.96 22900
8451370 D32L22GI 1/2 13 1.30 7.87 19.69 4.33 37.04 39000
8451470 D38L26GI 5/8 16 1.50 10.83 25.47 5.91 68.36 58700
